TL;DR: A dash cam voltmeter test is a quick way to check if your camera is getting stable power in the right driving and parking conditions. It helps you spot power-related install problems early, especially issues that show up during startup, recording load, or parking mode.
Key Takeaways:
- Test power in different conditions, not just with the car off.
- Check battery baseline, constant power, and ACC feed before changing parts.
- Voltage drops under load or during startup can cause restarts and missed footage.
- Stable voltage usually means you should check SD card health or settings next.
A dash cam can look fine, then fail when you need it most. A simple dash cam voltmeter test helps catch weak power, hardwiring mistakes, and parking mode issues early. If something feels off, a voltmeter is a smart first check before you start guessing.

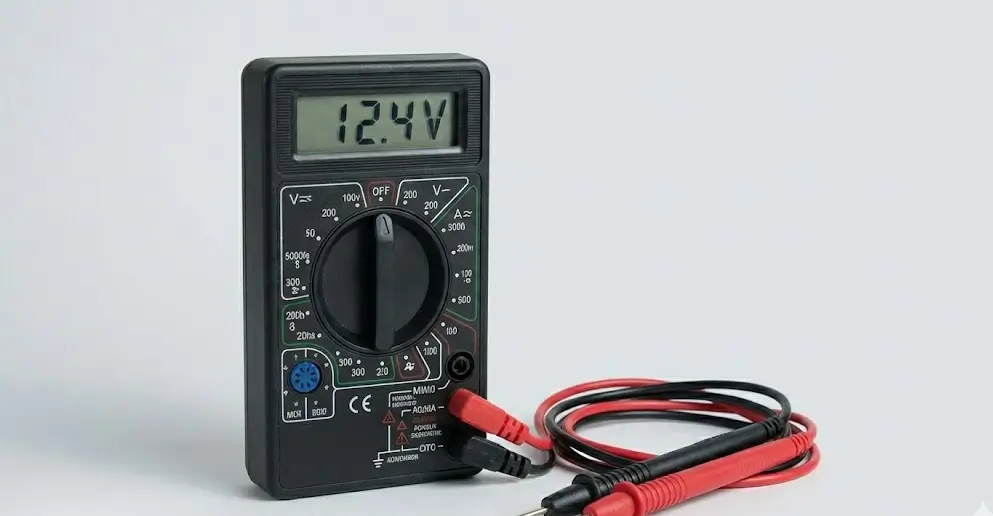

What the Voltmeter Test Shows
A dash cam voltmeter test will not identify every fault, but it quickly shows if your camera is getting stable power. Since many dash cam issues are actually power-related, this simple check helps explain restarts, failures, and parking mode problems.
Signs of a power issue
If your dash cam restarts at startup or stops working overnight, power is often the issue. Rear camera dropouts can also come from unstable voltage, not just bad cables. A voltmeter helps you quickly narrow down whether it is power or wiring.
What this test cannot confirm
A voltmeter cannot check signal quality, SD card health, or internal camera faults on its own. It is still a smart first step, which is why experienced installers test power first before replacing parts or chasing harder-to-find issues.
Before you start: safe vehicle testing
For a basic dash cam voltmeter test, use a digital voltmeter on DC voltage, good lighting, and identify your dash cam wires first. Work carefully, avoid random circuits, and if you are unsure about a fuse or wire, check the guide.
Key safety rules
Do not probe airbag wiring, steering column looms, or anything you are unsure about. Control your tools and avoid slipping across terminals, because shorts happen fast. When testing near the fuse box, go slowly and keep your hands steady.
What you need
A digital voltmeter, your dash cam hardwire kit diagram if you have it, and access to the fuse box or power point used by the install are enough for a basic check. If your setup uses an external battery pack, keep that product information handy too so you know what readings and behaviour to expect.
How to run a basic dash cam voltmeter test
The goal of a basic dash cam voltmeter test is simple, and it is to confirm that your dash cam receives the right power when the car is off, when ACC is on, and when the engine is running. You are checking for consistency, not chasing one perfect number.
Step 1: Check battery voltage with the car off
Start by checking battery voltage with the engine off and the car settled for a few minutes, so you have a proper baseline before blaming the dash cam.
- Check at rest: Test after the car has been sitting briefly.
- Healthy range: A good resting battery is usually in the mid 12-volt range.
- Weak battery risk: Low battery voltage can affect startup and parking mode.
- Important takeaway: The dash cam may be reacting to battery condition, not causing the issue.
Step 2: Check the constant power feed
If your dash cam is hardwired, test the constant power feed with the ignition off. This feed should stay live so the camera can enter and stay in parking mode properly. If voltage disappears, the camera may not switch modes correctly, and the fuse tap may be connected to the wrong circuit.
Step 3: Check the ACC or ignition feed
Check the ACC or ignition-switched feed with the car off, then again with ACC on. It should be off when the vehicle is off and live when ACC is on. If timing is wrong, the hardwire kit may misread modes, causing parking mode issues and battery drain.
Step 4: Check voltage while recording
A circuit can look fine with no load, then act up once recording starts, especially on two or three channel systems. During a dash cam voltmeter test, check voltage while the camera records. If it drops under load, the circuit or connection may be weak.
Step 5: Check voltage during engine start
Watch voltage during engine crank, because startup is where hidden install issues often show up.
- Small drop is normal: Some voltage dip during startup is expected.
- Big drop is a warning: Severe dips can cause restarts, missed clips, or boot loops.
- If it keeps restarting: The startup dip may be too much for the setup.
- What may fix it: A better circuit, cleaner ground, or install adjustment often helps.
If summer heat is making your dash cam less reliable, read why battery dash cams fail in Aussie heat and why capacitors keep recording for a practical breakdown of heat-related power stability issues.
Step 6: Check parking mode after shutdown
After driving, switch the car off and check if the dash cam enters parking mode. Use your voltmeter to confirm constant power stays stable while ACC drops. If it shuts down instead, check wiring logic, cutoff settings, or battery condition before changing anything else.
Common dash cam power testing mistakes
A dash cam voltmeter test done only with the camera off can miss real problems. Test under load, during startup, and after shutdown. Also check your ground contact carefully, because poor probe contact can cause misleading readings and bad diagnosis.
Wrong fuse tap position
- Fuse tap direction affects power flow.
- A bad tap position can confuse readings.
- Check the tap before blaming the hardwire kit.
Ignoring cutoff settings
- Hardwire kits use low-voltage cutoff to protect the battery.
- If set too high, the dash cam may shut down early.
- The install may still be correct.
Mistaking an SD card issue for a camera fault
- Not every recording issue is a voltage issue.
- SD card failures can look like power faults.
- If voltage is stable, test the SD card and camera settings next.
